Getting Started 🚀

Private Server 🔒

To enhance privacy and control, you can host your own private server. This keeps all message data within your infrastructure while maintaining push notification capabilities through our public server at api.sms-gate.app. This setup eliminates the need to configure Firebase Cloud Messaging (FCM) or rebuild the Android app, but it does demand some technical know-how.

flowchart
    %% === MAIN BLOCKS ===
    Users["👥 Users"]
    Android["🤖 SMSGate App"]

    subgraph PrivateServer["Private Server"]
        GoServerPrivate["🐹 Server"]
        GoWorkerPrivate["🐹 Worker"]
        DB["🦭 DB"]

        GoServerPrivate <--> DB
        GoWorkerPrivate --> DB
    end

    subgraph Google["Google"]
        FCM["🔥 FCM"]
    end

    subgraph PublicServer["Public Server"]
        GoServerPublic["🐹 api.sms-gate.app"]
    end

    %% === CONNECTIONS ===

    Users -->|REST API| GoServerPrivate
    GoServerPrivate -->|notification| GoServerPublic
    GoServerPublic -->|notification| FCM
    FCM -->|PUSH| Android
    Android <--> GoServerPrivate

    %% === ALTERNATIVE NOTIFICATION PATH ===
    Android -.->|SSE| GoServerPrivate

    %% === STYLING ===
    classDef altConn stroke-dasharray: 5 5,stroke:#888,fill:none;
    class Android,GoServerPrivate,GoWorkerPrivate,DB altConn;

Prerequisites ✅

The easiest way to run the server is to use Docker. For alternative installation methods, see Private Server Documentation.

To run the server, you'll need:

• 🐧 Linux VPS
• 🐳 Docker installed
• 🗄️ MySQL/MariaDB server with empty database and privileged user
• 🔄 Reverse proxy with valid SSL certificate (project CA supported)

Run the Server 🖥️

1. Create configuration
   Copy the example config and customize:

   Get config.yml template

   wget https://raw.githubusercontent.com/android-sms-gateway/server/master/configs/config.example.yml -O config.yml


   Key sections to edit:
   Private Server Configuration Example

   gateway:
       mode: private
       private_token: your-secure-token-here # (1)!
   http:
       listen: 0.0.0.0:3000
   database: # (2)!
       host: localhost
       port: 3306
       user: root
       password: root
       database: sms
       timezone: UTC


   1. Must match device configuration
   2. Must match MySQL/MariaDB configuration

   Configuration Location

   By default, the application looks for config.yml in the current working directory. Alternatively, you can set the CONFIG_PATH environment variable to specify a custom path to the configuration file.

2. Launch the server

   Docker Command

   docker run -d --name sms-gateway \
       -p 3000:3000 \
       -v $(pwd)/config.yml:/app/config.yml \
       ghcr.io/android-sms-gateway/server:latest


3. Run the background worker (optional)

   Docker Command

   docker run -d --name sms-gateway-worker \
       -v $(pwd)/config.yml:/app/config.yml \
       ghcr.io/android-sms-gateway/server:latest \
       /app/app worker


   The background worker handles maintenance tasks. See Background Worker for setup details.

4. Configure reverse proxy

   Example Nginx Config

   location / {
       proxy_pass http://localhost:3000;
       proxy_set_header Host $host;
       proxy_set_header X-Forwarded-For $remote_addr;
   }


   See Reverse Proxy Configuration for setup details and advanced options.

curl https://private.example.com/health
# Should return JSON health status

Configure Android App 📱

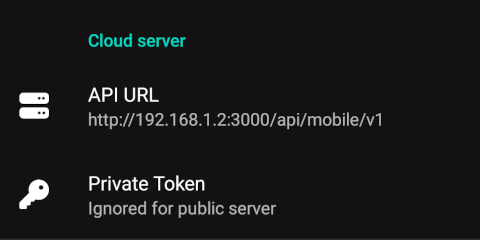

1. Access Settings
   Navigate to Settings tab → Cloud Server

2. Enter server details


   API URL: https://private.example.com/api/mobile/v1
   Private Token: your-secure-token-here


   !!! note "API URL Path" The API URL must include the /api/mobile/v1 path. Using just the base URL (e.g., https://private.example.com) will not work.

3. Activate connection

   1. Switch to Home tab
   2. Activate Cloud server switch
   3. Tap the "Offline" button to initiate the connection and registration process
   4. Wait for the app to establish connection (button will change to "Online")

Username: A1B2C3
Password:  z9y8x7...

Password Management 🔑

Identical to Cloud Server mode.
